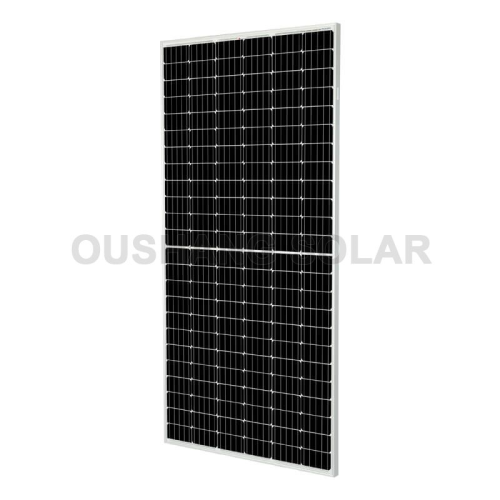

525W 535W 550W Solar Panel - 144 Cell Monocrystalline PV

525W 535W 550W Solar Panel - 144 Cell Monocrystalline PV

Attribute

Watts(390W-550W):

525W, 535W, 550W

Monocrystalline/Polycrystalline:

Monocrystalline Solar Panel

Product Description

Please refer to the PDF for all solar energy parameters.

Half cell technology, High power output

Product Specifications

Company profile

Hebei Oushang Photovoltaic Technology Co., Ltd has focus on solar panel production in China since 2014.The auto production is able to supply 3 containers per day. We have shipped thousands of containers of solar panels to all over the world. Our products are exported to Europe, Middle East, South America, Southeast Asian and Africa. The factory and products are qualified by TUV.

Product description:

Half cell modules have higher power output, better temperature-dependent performance, less shading effect, and low risk of hot spot.

Half cell advantage:

Half cell modules consist of half cells that cut from the ordinary whole cell. One whole sell is cut into two half pieces. Half cell modules have better performance in partial shadow condition. In half cell panels, the power loss is less than that in entire cell panel, since the bypass diodes restrict the loss of power. The by pass diodes creates a substitute path for the current to travel in the unshaded area instead of passing through the shaded parts.

How half cell modules work:

If an entire solar cell is cut into two half pieces, one half piece produce half as much current and one fourth resistance of the whole piece. Thus, the quantity of cells will be double. If they are wired up to work like a full cell panel, the current will be the same but with half the resistance. The electrical losses would be less due to the lower resistance.

Cells connection type

But if the half cut cells were wired together as in a standard full cell panel, they would produce twice the voltage and half the current. To make the output like standard full cell panels, the type of the half cells connection is different. There are two lots of half quantity series-connected cells. These two lots are connected in parallel. Voltages in parallel stay the same and the half cell panel remains the same voltage as the full cell panel.

Panel details

Structure

FAQ:

1. Is your company a factory or trading company? We design and produce solar panels of all sizes, customized solar panels, and we manufacture standard solar panel in our own factory. Not only do we have manufacturing capability, but we are also TUV certified party for 3rd-party production supervision.

2. Can you do OEM and ODM? Yes. We provide a wide range of options for common panels and non-standard ones.

3. Can you do according to custom & apos request on panels? We stick to providing the professional skills and products on the basis of all our customers' different requirements.

4. What is your delivery time? Common panels can be delivered between 2~3 weeks.

5. Can you provide sample? Samples available for all sizes. For more details you can contact our sales representative.

6. Why order from Oushang Solar? Quality with excellent design to meet major international standards. 24-hour response to any post sales service.

Please leave contact information, our professional staff will contact you the first time!
