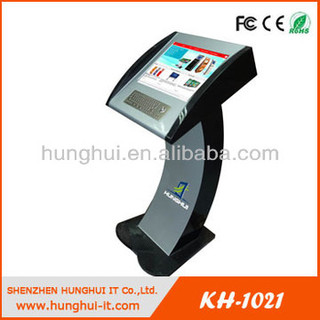

LCD touch screen information kiosk kiosk manufacturer

Product Description

Specifications

Description

Specifications

1.Free Standing Kiosk
2.Support all kinds of peripheral-RFID/Printer/Bill acceptor
3.15'' 17'' 19'' 22'' available

LCD touch screen information kiosk kiosk manufacturer

Highlights

  • Small footprint with space for multiple functions
  • 19 inch wide screen industrial display
  • Robust metal housing
  • Easy service access through the front
  • Ideal for payment applications (Cash/Non-Cash)
  • Easily customizable appearance

Benefits

  • Adaption to the operational concept of the client through freely adjustable placement of the components
  • Implementation of functional and operational concept through the customized system front
  • Excellent presentation of content through luminous 19 inch wide brilliant image display in 16:10 format
  • Simple system maintenance through the front access
  • Security options for cash management
  • Ticket issuance (receipt, coupon, bon, etc.) through simultaneous use of unique printer types
  • Appearance can be easily customized (color, logo, design, etc.)
  • System is optimally designed for the use within retail, public spaces, and company environments
  • Long-life cycle due to high value engineering and high quality materials
  • Meets a wide variety of project requirements due to extensive range of functional options

Specifications and options

GeneralHousingPowder-coated metal
Connections1 x RJ45 Port (10-100M), 4 x RS232 Port, 8 x USB Port,
Measurements600 x 1670 x 646 mm (W x H x D)
Weight80 kg
LocationIndoor
DisplaySize15'' 17'' 19'' 21.5''
ResolutionWSXGA+, 1024*768 / 1400*900(1280*1024)/1920*1080 pixels
Brightness350 cd/m²
Viewing angle160° v/h
Payment functionsCoin validator
Bank note validator
Electronic payments with EC and credit card
Computer (Optional )

Intel Core 2 Duo E5500 2.6GCPU/ DDR3 2G EMS memory /250G HDD / Intel G41 mainboard/(integrated sound card/graphic card /10-100M network card)

Printer

Thermal printer (58mm to DIN A4)
laser printer (printouts in mono and colour)

Touch ScreenSAW touch screen /infrared touch screen
Card readerMagnetic card reader
Chip card reader
RFID
ConnectivityNetwork connection over W-LAN
Bluetooth
WiFi
SoundStereo loudspeaker
Microphone
Webcam8 Megapixel camera
OtherUltrasonic proximity sensor
Uninterrupted power supply (UPS)
Phone options (analog and VoIP)
OS (optional)

Windows2000,WindowsXP,Windows7,Windows 8,Red Hat Linux

Examples of use
  • An extensive input and output system
    Input, output, and processing of information and content in different input forms and with different storage media.
  • Customer management system
    Customer recruitment and retention and loyalty through self-service terminal.
  • Sale and transaction system
    Independent execution of sales process by your customers at a self-service terminal.
  • Employee Information System (EIS)
    Providing corporate information to the employees.
  • Customer loyalty system (coupons)
    Printing of coupons and vouchers for the customers.
  • Ticketing
    Printing tickets

Package


Terms

FOB Price: US $ 600 - 1,500 / Set |
Minimum Order: 1 Set/Sets
Port: SHENZHEN
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
