Moonleds Power LED UV series features extremely high radiation intensity, industry-standard package, to enable cost effective, high efficiency lighting designs.
Product Description
- Robust and industry standard package
- Full UV wavelength options: 365nm, 385nm, 395nm, 405nm
- Accurate peak wavelength and excellent color uniformity
- Superior mW/W enables outstanding efficacy in end application

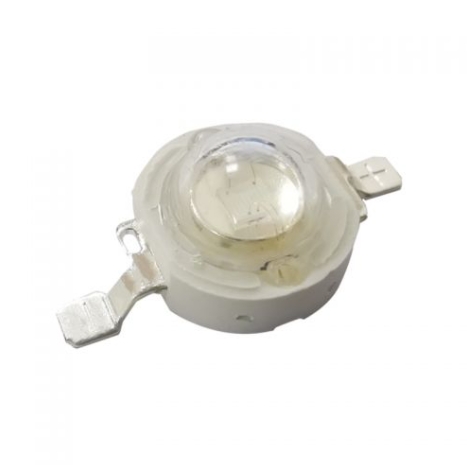

3W Power LEDs UVA Diode 365nm, 385nm, 395nm, 405nm
Moonleds Power LED UV series features extremely high radiation intensity, industry-standard package, to enable cost effective, high efficiency lighting designs.
Moon UVA LEDs is offered in 365nm, 385nm, 395nm, 405nm with 60 degree and 120 degree beam angle options. It uses for sterilization, curing and printing field, as well as plant growth in specified stage.
Features
• Robust and industry standard package;
• Red copper base with 99.99% gold wire, Epileds chip;
• Full UV wavelength options: 365nm, 385nm, 395nm, 405nm;
• Accurate peak wavelength and excellent color uniformity;
• Superior mW/W enables outstanding efficacy in end application:
Sterilization, Nail-Caring, Ink Curing, Ink Sprayer, Printing, Painting, Plant growth, Mosquito trap
UVA High Power LEDs specification:
Color | Wavelength (nm) |
VF (V) |
IF (mA) |
Optical Power (mW) |
Part Number |
UVA | 365-370 | 3.2-3.6 | 700 | 1000-1200 | MN-HPUV36531000 |
UVA | 385-390 | 3.2-3.6 | 700 | 1000-1200 | MN-HPUV38531000 |
UVA | 395-400 | 3.2-3.6 | 700 | 1000-1200 | MN-HPUV39531000 |
UVA | 405-410 | 3.2-3.6 | 700 | 1000-1200 | MN-HPUV40531000 |
UVA | 420-425 | 3.2-3.6 | 700 | 1000-1200 | MN-HPUV42031000 |
3W High Power LEDs dimension
Tolerance: +/- 0.1mm
