Pulse Function Arbitrary Waveform Generators

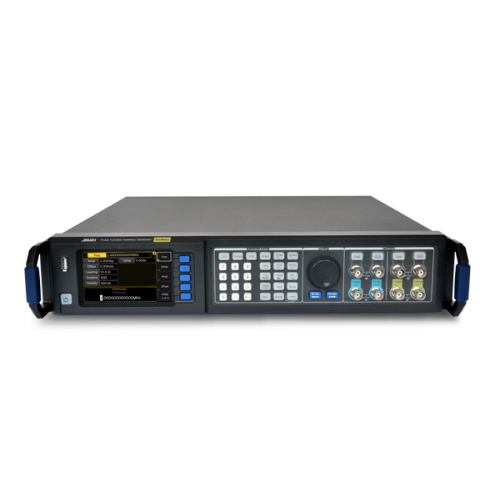

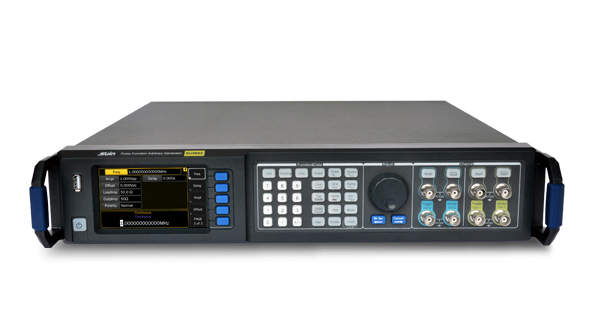

SU5600 Series-Pulse Function Arbitrary Waveform Generators have excellent specifications and powerful functional features, which can generate a variety of waveforms, frequency of pulse up to 120MHz and sine up to 240MHz.

Product Description

Overview

SU5600 Series-Pulse Function Arbitrary Waveform Generators have excellent specifications and powerful functional features, which can generate a variety of waveforms, frequency of pulse up to 120MHz and sine up to 240MHz. Pattern generator is also available for SU5601 and SU5602, can generate up to 120 Mbit/s ideal and arbitrary bit shape pattern.With many working modes: modulation, burst and sweep,you can quickly complete a variety of measurement work.

Product Model

SU5601/SU5602/SU5603/SU5604

SU5600 Series Pulse Function Arbitrary Waveform Generator Features

* 1 or 2 channel is selectable, differential outputs

* Pulse, sine, square, ramp, noise, arbitrary and pattern (optional) could be generated

* Noise, with selectable crest factor, and signal repetition time of 26 days

* 14-bit, 2GSa/s arbitrary waveform, 512k samples deep arbitrary waveform memory per channel

* FM, AM, PM, PWM, FSK modulation capabilities up to 10MHz

* Trigger, sweep and burst modes are supported.

* Pattern generator with 16Mbit memory is optional

* Communication interfaces USB Device, USB Host, LAN and GPIB are provided



SU5600 Series Pulse Function Arbitrary Waveform Generator Specifications



Model SU5601 SU5602 SU5603 SU5604
Output 1 2 1 2
Patter Generator Yes Yes No No

Pulse

Frequency

1μHz~120MHz

Resolution

1μHz

Pulse Width

4.1ns to (period - 4.1ns) typ.

Accuracy

± 500ps ± 50ppm

Transition Time

2.5ns~1000s (10%~90%)

Accuracy

± 500ps(< 50ns, 1Vpp)
Sine



Frequency

1μHz~240MHz

Resolution

1μHz

Square

Frequenc

1μHz~120MHz

Duty Cycle

0.1%~99.9% (limited by frequency setting)

Ramp

Frequency

1μHz~5MHz

Symmetry

0.0%~100%

Noise

Bandwidth

120MHz typ.

Amplitude

Distribution

Selectable Gaussian, user defined

Crest factor 

(peak/RMS) 

selectable

3.1, 4.8, 6.0, 7.0 typ. (Gaussian distribution)

Repetition Time

26 days

Arbitrary

DAC

Sample Rate

2GSa/s, Fixed

Length

2~512k points

DAC Resolution

14 bits

Frequency

1μHz~120MHz

Resolution

1μHz

PP Jitter

1ns typ.

Modulation

AM, FM, PM

Carrier waveform: Sine, square, ramp, arbitrary

Internal modulation: Sine, square, ramp (up,50%,down),noise, arbitrary

Modulation frequency: 1mHz~10MHz

FSK

Carrier waveform: Sine, square, ramp, arbitrary

Internal modulation:50% square

FSK rate: Internal: 1mHz~50MHz, External: DC~10MHz

Frequency Range: 1mHz~240MHz

PWM

Carrier waveform: Pulse

Internal modulation: Sine, square, ramp(up,50%,down), noise, arbitrary

Modulation frequency: Internal: 1mHz~10MHz, External: DC~10MHz,

Offset: 0%~99.9% pulse width

Sweep

Waveform

Pulse, sine, square, ramp, triangle, arbitrary

Sweep time

100μs~500s

Start/Stop

frequency

1μHz~240MHz (Max frequency depends on selected waveform)

Burst

Waveform

Pulse, sine, square, ramp, triangle, arbitrary

Frequency

1μHz~120MHz

# of waveforms

in a burst

2~231-1

Output

Max frequency

120MHz pulse/240MHz sine

Type

Single-end or differential

Amplitude

(50Ω~50Ω)

50mVpp~10Vpp (<50MHz)

50mVpp~5Vpp  (≤120MHz)

50mVpp~3Vpp  (>120MHz)

DC offset

accuracy

Voltage (50Ω~50Ω)       -10V~+10V typ.

Pattern

Generator

(Only for

SU5601/

SU5602)

Data rate

1μbit/s~120Mbit/s

Pattern memory

16Mbit

Number of levels

2, 3 or 4 (user selectable)

Trigger modes

Continuous, gated, one bit per trigger event,

one sequence per trigger event

Pattern sources

Internal: PRBS -7, 9, 11, 15, 23 and 31

User Defined

External Input

Modulation

AM, FM, PM

Arbitrary

bit shape

User-defined and predefined bit transitions with up to

64 arbitrary waveform points per bit transition
