Dongfeng Truck Mounted Aerial Platform

Product Description

Payments:T/T

Delivery:35-45 Working days

Origin:China

Packing:NUDE

Inspection:-

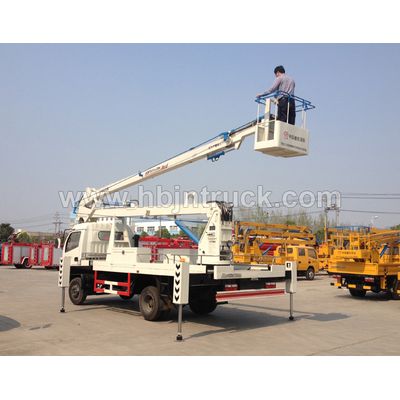

Dongfeng Truck Mounted Aerial Platform

We are China truck mounted aerial platform manufacturers, we manufacture truck mounted aerial platform, truck mounted scissor lift, our truck mounted aerial platform has two types: telescopic boom lift and articulated boom lift.

Truck mounted aerial platform could be used for painting, industry, factories, for working on electric poles, cables or window, statue and wall cleaning.

Product website: https://www.hbjntruck.com/products/

Features:

---Our truck mounted aerial platform meet ISO9001:2008 and China CCC standard.

---Articulated boom, max working height 18 meter.

---4 outriggers could be extended seperately or together.

---Bucket rated loaded capacity 200kg

---The crane mounted at the end of boom, max lifting capacity 1000kg.

---Emergency pump assure the security.

More information:

Vehicle Model

JDF5070JGK

Chassis Brand

Dongfeng

Drive Type

4 x 2, LHD / RHD

Wheelbase

3800 mm

Cabin

Single row, 2 persons allowed

Overall Dimension (L x W x H)

8250 x 2320 x 3500 mm

GVW

7490 kg

Kerb Weight

7295 kg

Engine

Engine Model

CY4102-C3C

Engine Make

Chaochai

Rated Power

88 kw / 120ps

Displacement

3856 ml

Type

Diesel engine, Euro 3

Brake

Air brake

Transmission

5 speed forward, 1 reverse

Tire Size

7.50-16

Max Speed

95 km/h

Superstructure

Max Working Height

18 m

Boom Type

Knuckle boom, 3 sections

Max Working Radius

7.5 m

Hydraulic System Working Pressure

16 MPa

Bucket Load

200 kg
