Low Cost 3 Axis MEMS Gyro
Product Description
Introduction
The ER-3MG-302 is a three axis MEMS gyroscope which can measure the angular rate information of pitch, roll and heading in real-time and output it to the users. The product has the advantages of small size, low power consumption, light weight and good reliability, and it can meet the application needs of the corresponding fields.
Based on microelectromechanical systems (MEMS) technology, this three-axis gyroscope consists of three independent gyroscopes, each measuring the speed of an object’s rotation around an axis. As the object rotates, a gyroscope on each axis generates a corresponding electrical signal. These signals are processed to give the value of the object’s angular velocity on each axis. By measuring angular velocity on three axes simultaneously, a three-axis gyroscope can provide accurate angular velocity information for applications such as positioning, navigation, attitude control, and balance.
Three-axis gyroscopes are widely used in many fields, including drones, robots, wearable devices, medical devices, game controllers, etc. Its high precision and fast response make it a key component of many navigation and attitude control systems.
Features
Short startup time
Digital output
Small size, low power consumption, light weight, simple interface, easy to install and use
Output the measured value of three axial angular rate of carrier independently, continuously
Measure the angular rate of pitch, rolling and heading of the carrier and output it in real-time

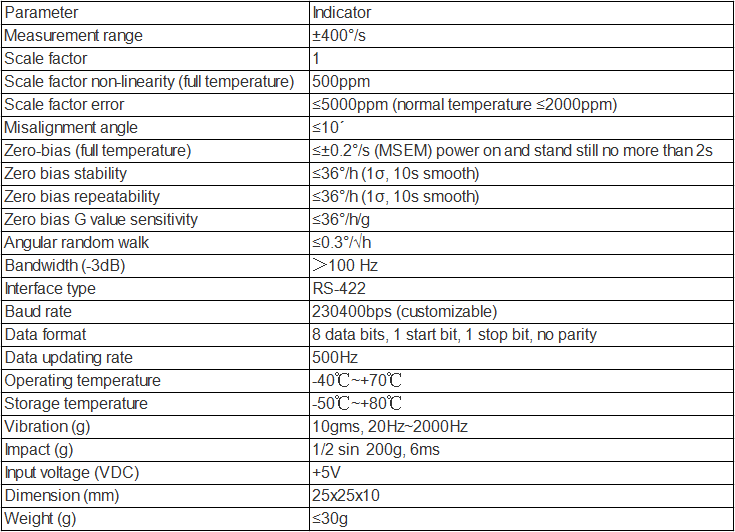

Specifications
