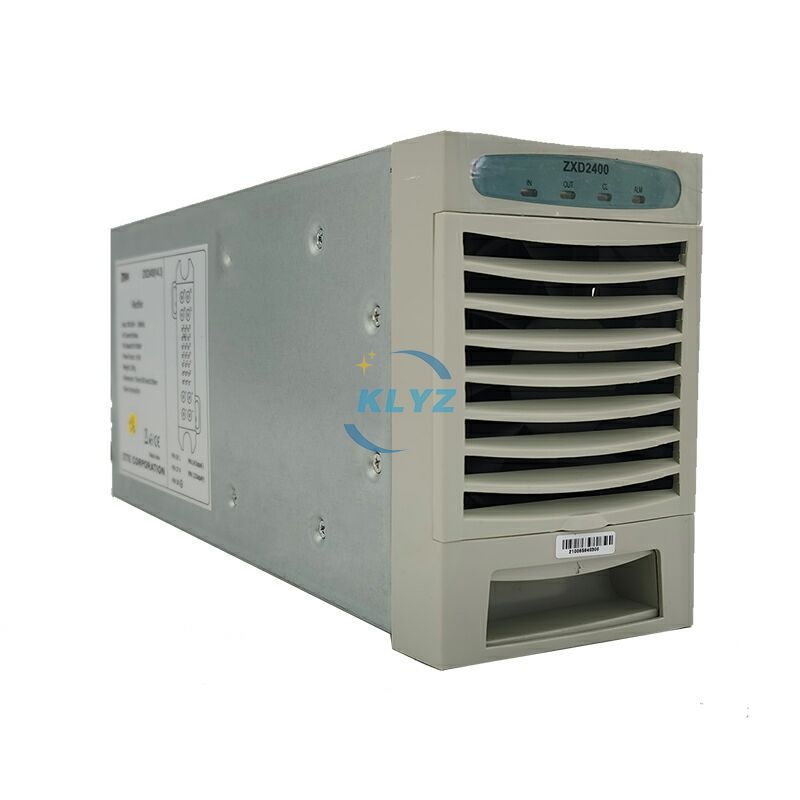

ZTE ZXD2400 rectifier module 48V 3000W

The ZXD2400(V4.3) rectifier is a switching rectifier for communication DC power supply system, and its rated DC output is 53.5V/50A, complete the output conversion from AC to DC.

Product Description

The ZXD2400(V4.3) rectifier is a switching rectifier for communication DC power supply system, and its rated DC output is 53.5V/50A, complete the output conversion from AC to DC.

ZXD2400 rectifier is designed according to international standards for the working environment of small and medium-sized communication systems. Power supply for small switching equipment, microwave communication, data products, optical fiber transmission and other communication equipment.



Features of Rectifier module

• Small size, light weight.

• Support hot plug function.

• Wide working temperature range.It can fully output power in the temperature range of -5℃ ~ +40℃.

• Active power factor correction technology is adopted to reduce the pollution of equipment to the power grid.

• Meet the power supply requirements of 110 V/120 V/127 V power grid system and 220 V power grid system. Wide input voltage range.And is suitable for areas with large fluctuation of power grid voltage.

• High power density. When power is supplied in 110 V/120 V/127 V power grid, the power density is as high as 568 mW/cm 3. The power density is as high as 854 mW/cm 3 in 220 V power grid system.



Specification of Rectifier

Dimension 134 mm×87 mm×318 mm(H×W×D)
Weight 3.8 kg
Rated output current 50A
Maximum output power 3000W
DC output voltage

The rated output is 53.5 V (absolute value, voltage polarity is determined by connection), and the output is continuously

adjustable from 42 v to 58 v.

Voltage stabilizing accuracy     ≤±0.6%
Working temperature -5℃ ~ +45℃
Storage temperature -40℃ ~ +70℃
Relative humidity 10% ~ 90%
Altitude 0 ~ 2000 m: full power output
2000 m~3000 m: for every 100 m elevation, the system will be derated by 1%.



Application of ZXD2400 Rectifier

ZXD2400 Rectifier is high efficient power supply for small switching equipment, microwave communication, data products, optical fiber transmission and other communication equipment.



KELINGYIZHI is a professional supplier of ZTE ZXD2400 (V4.3) rectifier module 48V 3000W with stable supply and competitive wholesale price. We export TE ZXD2400 (V4.3) rectifier to worldwide to satisfy customers' demands.
